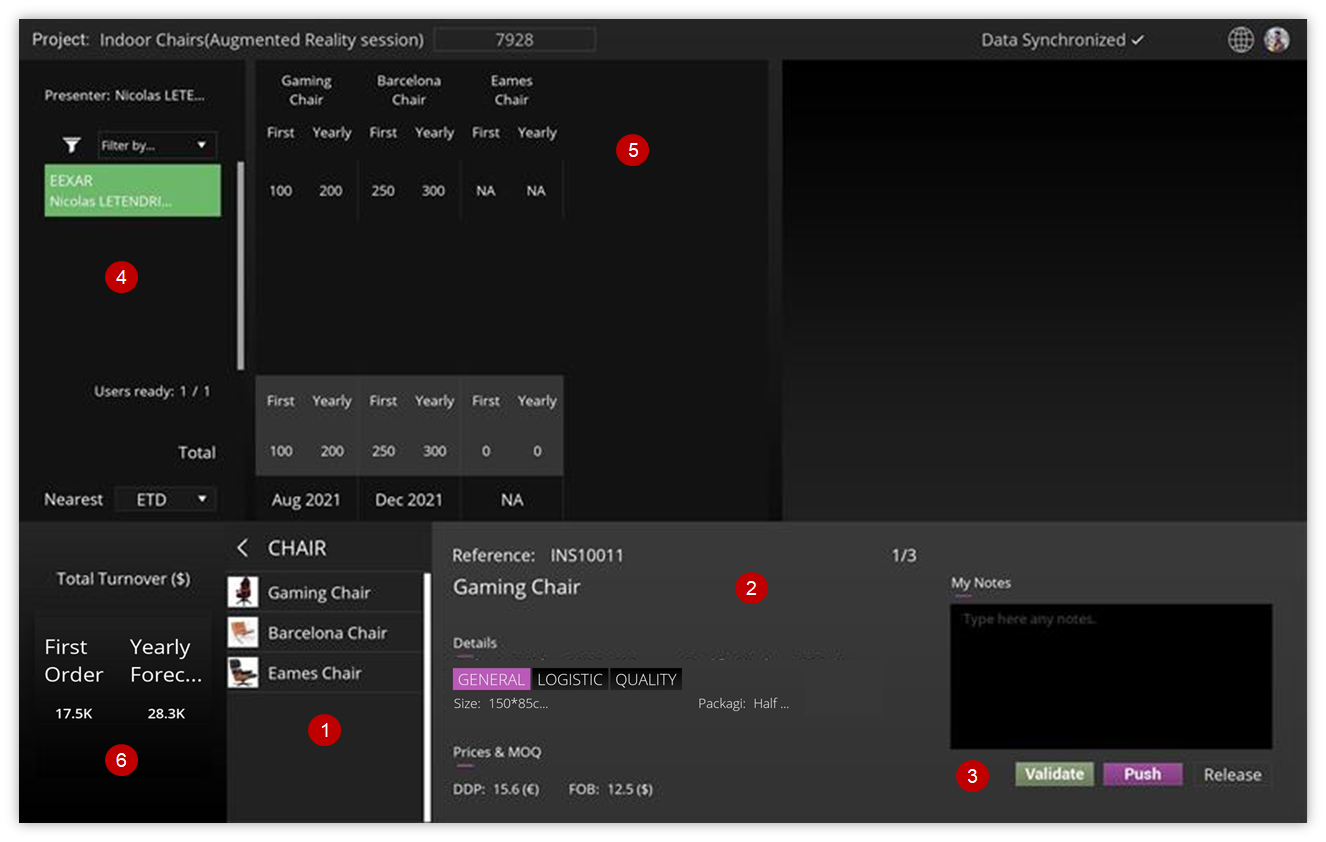

After launching a Project containing an AR session as Presenter, you will be able to guide the session. To do so, click the Augmented Reality button and you are good to go, during an Augmented Reality there are a list of activities that you can perform to utilize the benefits of the system, let us see a few examples of your core actions:
Similar to the list of products in the AR Catalog, it lists the products available inside the current Project to be presented. To load a Product, simply click on it.
products with 3D content will appear in the list (to activate 3D
content for a product, make sure either to create an AR presentation
with the AR Editor
, or to set at least one 3D Model to "active AR" in the Media associated view
2) Product Details & Prices
Lists the Details & Prices concerning the product (the details available depend on the Project's settings).
As a Presenter you have access to all the price.
3) Interactions buttons
After selecting the Product you want to present, you can perform certain actions:
List of actions
Push: After loading a Product, you can push it to the Attendees.
This action will result in having the virtual screen appearing in front of the Attendees (= AR Presentation created with the AR Editor). The screen will follow the Attendees camera until you decide to release the Product.
Validate: At any time you can validate the Attendees orders without having them to confirm on their side (this also validates the Notes that you took).
Release: After pushing a Product, you release it at any time.
4) Attendees connected
Each time an Attendee connects to the Project, he will appear in the left panel, this panel also gives a hint to the Presenter of the Attendees order state after pushing a product. Indeed, once the Attendee validates its order, then its name will turn green on the Presenter screen.
5) Attendees Orders
The central grid panel
recaps the last five products pushed by the Presenter and the orders associated for each Attendee.
A number greater than 1000 will be shortened using the "1K" abbreviation, to view the real value click on the number.
The Presenter can only view the orders of the Attendees connected.
6) Total Turnover
This panel sums up the total turnover generated by the Presenter according to the Attendees total orders.
The Total Turnover displayed only concerns the orders of the Attendees currently connected.
The currency in which the Total Turnover is calculated depends on the Project's settings.
