AR Editor

AR Editor


EEXAR provides a way to simply create AR presentation for each one of your product, by using the AR Editor you'll be able to create enriched presentation in virtual screens without the need for coding.

Create an AR presentation

To create an AR presentation for a product

  1. Navigate to the concerned Product.
  2. Click the Cube icon inside the carousel.
  3. Click Yes to the message that prompts.

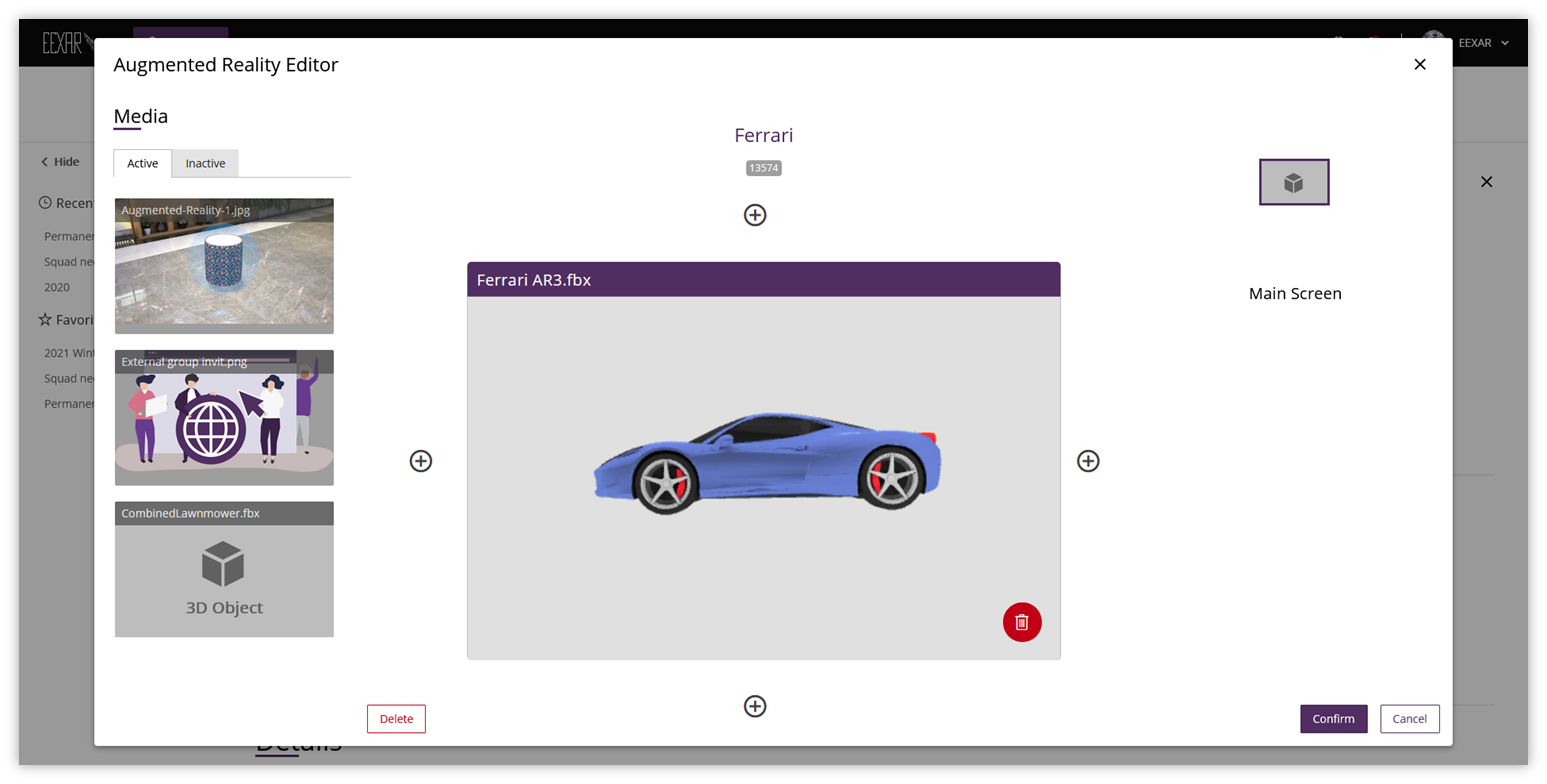

  4. Create the AR Presentation:
To do so, simply drag'n'drop the content from the left panel inside the screen displayed in the middle. The content available depends on the configuration of these under the Media panel, for instance the "Web only" 3D Models will not be able available to be used in the AR Editor, except "Attached files" you can use any kind of Media from pictures, videos to 3D Models.



Note:
If you only want the 3D Model to be displayed in the AR Catalog, do not create an AR Presentation. If you do so, make sure you have a 3D Model active for AR.
If you want your Product to appear in the available list of products in AR sessions during Projects, make sure the AR Presentation is enabled.

Edit an AR presentation

To edit an AR presentation for a product

  1. Navigate to the concerned Product.
  2. Click the Cube icon inside the carousel.
  3. Update the AR Presentation.

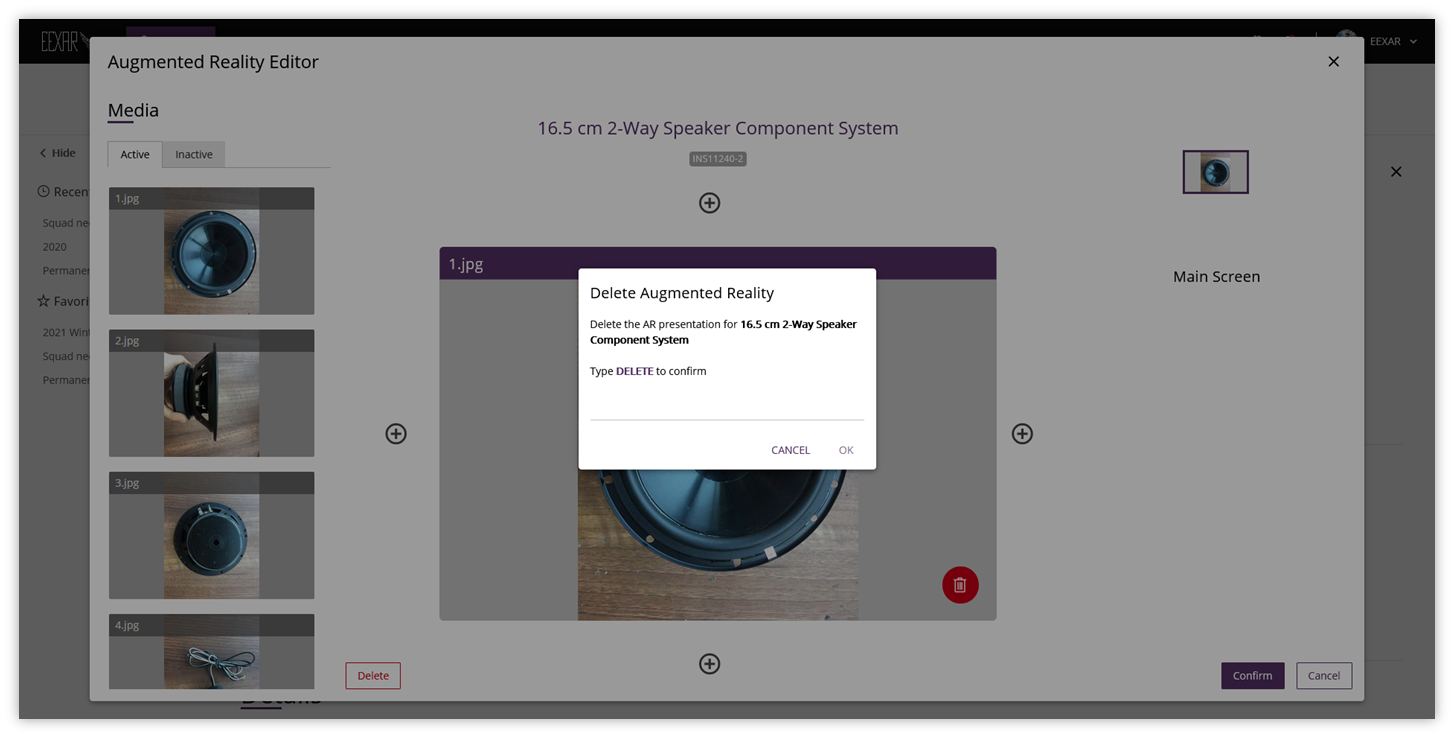

Delete an AR presentation

To delete an AR presentation for a product

  1. Navigate to the concerned Product.
  2. Click the Cube icon inside the carousel.
  3. Click the Delete button.
  4. Type "DELETE" and click OK.
